| MEREK | OTOTRI |
|---|---|
| DIAMETER DALAM | 12MM |
| DIAMETER LUAR | 24MM |
| KETEBALAN | 13MM |
| BERAT | 27G |
| KEMASAN | 1 |
|
Sebutan :
|
NA4901 NA4902 NA4903 NA4904 NA4905 NA4906 NA4907 NA4908 NA4909 NA4910 NA4911 NA4912 Bantalan Rol Jarum
|
|
|

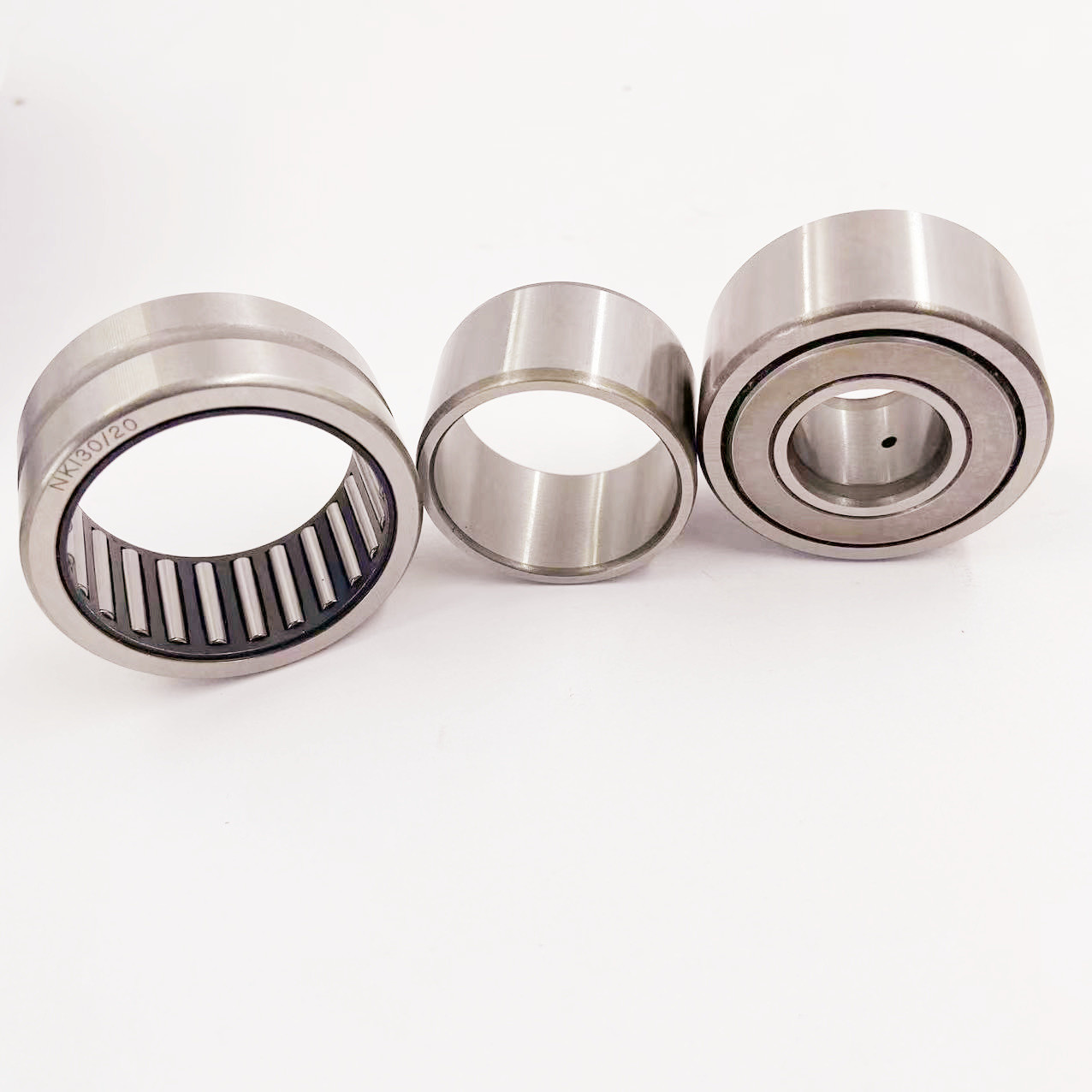

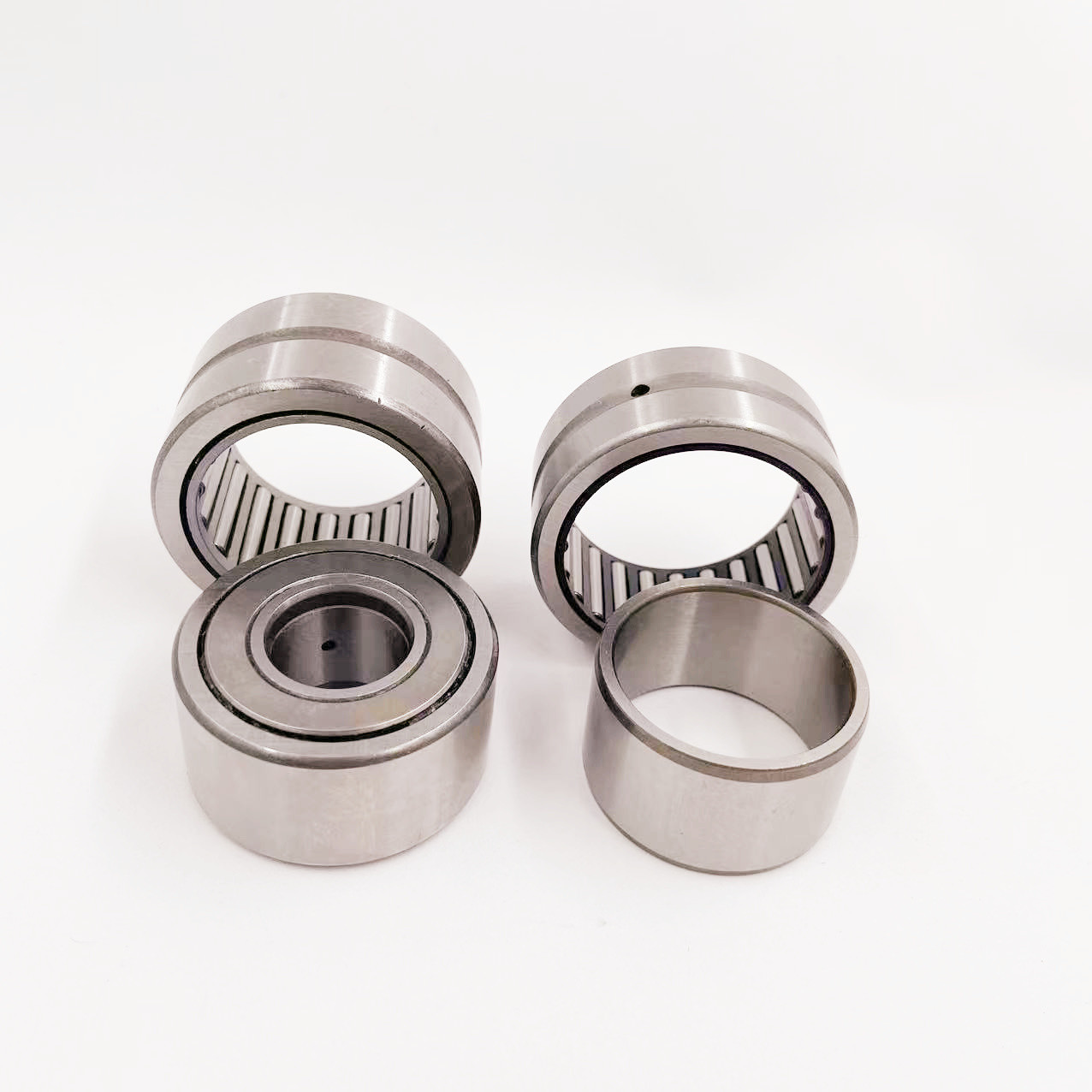

Bantalan Rol Jarum dengan Flensa tanpa Cincin Bagian Dalam
|
|
Bahan Cincin:
|
GCR15/Baja Mesin
|
|
Bahan Rol :
|
GCR15/Baja Krom
|
|
Bahan Kandang :
|
Nilon
|
|
Jumlah Baris :
|
Baris Tunggal
|
|
Peringkat Presisi:
|
P0 P6 P5 P4
|
|
Industri Aplikasi :
|
Toko Bahan Bangunan, Pabrik Manufaktur, Bengkel Mesin, Pabrik Makanan & Minuman, Retail, Pekerjaan Konstruksi, Energi
& Penambangan dll. |
|
Daftar Harga:
|
Berunding
|
|
Melayani :
|
OEM atau Logo Pelanggan Dapat Diterima dan Penawaran Sampel
|
|
Kemasan :
|
Pengepakan Industri atau Sesuai Kebutuhan Pelanggan
|
|
Layanan Lebih Lanjut:
|
silakan Hubungi Kami. Alamat kontak ada di bagian bawah.
|
|
Model Bantalan
|
Dimensi (mm)
|
|
|
Peringkat Beban Dasar (KN)
|
|
Berat (Kg)
|
||
|
|
D
|
F
|
D
|
Dyn.C
|
Stat.Co
|
|
||
|
NA4900
|
10mm
|
22mm
|
13mm
|
8800N
|
10400N
|
0,02Kg
|
||
|
NA4900 2RS
|
10mm
|
22mm
|
13mm
|
7370N
|
8150N
|
0,03Kg
|
||
|
NA4901
|
12mm
|
24mm
|
13mm
|
9900N
|
12200 N
|
0,03Kg
|
||
|
NA4901 2RS
|
12mm
|
24mm
|
13mm
|
8090N
|
9650N
|
0,03Kg
|
||
|
NA4902
|
15mm
|
28mm
|
13mm
|
11200N
|
15300 N
|
0,03Kg
|
||
|
NA4902 2RS
|
15mm
|
28mm
|
13mm
|
9130N
|
12000N
|
0,04Kg
|
||
|
NA4903
|
17mm
|
30mm
|
13mm
|
11400N
|
16300N
|
0,04Kg
|
||
|
NA4903 2RS
|
17mm
|
30mm
|
13mm
|
9520N
|
12900 N
|
0,04Kg
|
||
|
NA4904
|
20mm
|
37mm
|
17mm
|
21600 N
|
28000 N
|
0,08Kg
|
||
|
NA4904 2RS
|
20mm
|
37mm
|
17mm
|
19400N
|
22400 N
|
0,08Kg
|
||
|
NA49/22
|
22.000mm
|
39mm
|
17mm
|
23300 N
|
32000 N
|
0,08Kg
|
||
|
NA4905
|
25mm
|
42.000mm
|
17mm
|
24200 N
|
34500 N
|
0,09Kg
|
||
|
NA4905 2RS
|
25mm
|
42.000mm
|
17mm
|
21600N
|
27500N
|
0,09Kg
|
||
|
NA49/28
|
28.000mm
|
45mm
|
17mm
|
25100 N
|
36500 N
|
0,10Kg
|
||
|
NA4906
|
30mm
|
47mm
|
17mm
|
25500 N
|
39000 N
|
0,10Kg
|
||
|
NA4906 2RS
|
30mm
|
47mm
|
17mm
|
23300 N
|
32000 N
|
0,11Kg
|
||
|
NA49/32
|
32.000mm
|
52.000mm
|
20mm
|
30800 N
|
51000N
|
0,16Kg
|
||
|
NA4907
|
35mm
|
55.000mm
|
20mm
|
31900 N
|
54000 N
|
0,17Kg
|
||
|
NA4907 2RS
|
35mm
|
55.000mm
|
20mm
|
27000 N
|
43000 N
|
0,18Kg
|
||
|
NA4908
|
40mm
|
62mm
|
22mm
|
42900 N
|
71000N
|
0,23Kg
|
||
|
NA4908 2RS
|
40mm
|
62mm
|
22mm
|
36900 N
|
58500 N
|
0,25Kg
|
||
|
NA4909
|
45mm
|
68.000mm
|
22mm
|
45700 N
|
78000 N
|
0,27Kg
|
||
|
NA4909 2RS
|
45mm
|
68.000mm
|
22mm
|
39100 N
|
64000 N
|
0,29Kg
|
||
|
NA4910
|
50mm
|
72mm
|
22mm
|
47300 N
|
85000 N
|
0,27Kg
|
||
|
NA4910 2RS
|
50mm
|
72mm
|
22mm
|
40200N
|
69500 N
|
0,30Kg
|
||
|
NA4911
|
55mm
|
80.000mm
|
25mm
|
57200 N
|
106000 N
|
0,40Kg
|
||
|
NA4912
|
60mm
|
85.000mm
|
25mm
|
60500 N
|
114000 N
|
0,43Kg
|
||
|
NA4913
|
65.000mm
|
90mm
|
25mm
|
61600N
|
120000 N
|
0,46Kg
|
||
|
NA4914
|
70.000mm
|
100mm
|
30mm
|
84200 N
|
163000 N
|
0,73Kg
|
||
|
NA4915
|
75.000mm
|
105mm
|
30mm
|
84200 N
|
170000 N
|
0,78Kg
|
||
|
NA4916
|
80.000mm
|
110.000mm
|
30mm
|
88000 N
|
183000 N
|
0,88Kg
|
||
|
NA4917
|
85.000mm
|
120mm
|
35mm
|
108000 N
|
250000 N
|
1,25Kg
|
||
|
NA4918
|
90.000mm
|
125.000mm
|
35mm
|
112000 N
|
265000 N
|
1,30Kg
|
||
|
NA4920
|
100.000mm
|
140.000mm
|
40mm
|
125000N
|
280000 N
|
1,90Kg
|
||
|
NA4922
|
110.000mm
|
150.000mm
|
40mm
|
130000 N
|
300.000 N
|
2.10Kg
|
||
|
NA4924
|
120.000mm
|
165.000mm
|
45mm
|
176000 N
|
405000 N
|
2,85Kg
|
||
|
NA4926
|
130mm
|
180.000mm
|
50mm
|
198000N
|
480000 N
|
3,90Kg
|
||
|
1
|
Rol Jarum dan Rakitan Sangkar
|
K, K‥T2, K‥S, K‥ZW, KMJ, KMJ‥S, KJ‥S, KV‥S
|
|
|
|
PCJ
|
|
2
|
Rol Jarum dan Rakitan Sangkar untuk Batang Penghubung
|
hal
|
|
|
|
KBK
|
|
3
|
Bantalan Rol Jarum Piala yang Ditarik
|
HK, HK‥ZWD, HMK, HMK‥ZWD, BK, BK‥ZWD
|
|
|
|
HK‥L, HMK‥L, HK‥LL, HMK‥LL, BK‥L
|
|
|
|
DCL
|
|
|
|
HCK
|
|
4
|
Bantalan Rol Jarum Cincin Mesin
|
RNA48, RNA49, RNA59, RNA69, NK, NKS
|
|
|
|
NA48, NA49, NA59, NA69, NK+IR, NKS+IR
|
|
|
|
TN
|
|
|
|
PAK+MI
|
|
|
|
RNA49‥L, RNA49‥LL
|
|
|
|
NA49‥L, NA49‥LL
|
|
5
|
Bantalan Rol Jarum Cincin Mesin Tipe Dapat Dipisahkan
|
RNAO, RNAO‥ZW
|
|
|
|
NAO, NAO‥ZW
|
|
6
|
Bantalan Rol Jarum yang Menyelaraskan Sendiri
|
RPNA‥R
|
|
|
|
PNA‥R
|
|
7
|
Cincin bagian dalam
|
IR
|
|
|
|
MI
|
|
8
|
Bantalan Rol Jarum yang Dapat Disesuaikan Jarak Bebasnya
|
RNA49‥S
|
|
|
|
NA49‥S
|
|
9
|
Bantalan Kompleks
|
NKX, NKX‥Z
|
|
|
|
NKX+IR, NKX‥Z+IR
|
|
|
|
NKXR, NKXR‥Z
|
|
|
|
NKXR+IR, NKXR‥Z+IR
|
|
|
|
NKIA
|
|
|
|
NKIB
|
|
|
|
AXN
|
|
|
|
ARN
|
|
10
|
Pengikut Kamera
|
KRM‥XH, KRMV‥XH
|
|
|
|
KR‥H, KR‥XH, KR‥LLH, KR‥XLLH
|
|
|
|
KR, KR‥X, KR‥LL, KR‥XLL
|
|
|
|
KRV‥H, KRV‥XH, KRV‥LLH, KRV‥XLLH
|
|
|
|
KRV, KRV‥X, KRV‥LL, KRV‥XLL
|
|
|
|
KRT, KRT‥X, KRT‥LL, KRT‥XLL
|
|
|
|
KRVT, KRVT‥X, KRVT‥LL, KRVT‥XLL
|
|
|
|
KRU, KRU‥X, KRU‥LL, KRU‥XLL
|
|
|
|
KRVU, KRVU‥X, KRVU‥LL, KRVU‥XLL
|
|
|
|
NUKR‥H, NUKR‥XH
|
|
|
|
NUKR, NUKR‥X
|
|
|
|
NUKRT, NUKRT‥X
|
|
|
|
NUKRU, NUKRU‥X
|
|
|
|
CR‥H, CR‥XH, CR‥LLH, CR‥XLLH
|
|
|
|
CR, CR‥X, CR‥LL, CR‥XLL
|
|
|
|
CRV‥H, CRV‥XH, CRV‥LLH, CRV‥XLLH
|
|
|
|
CRV, CRV‥X, CRV‥LL, CRV‥XLL
|
|
11
|
Pengikut Rol
|
RNAB2, RNAB2‥X
|
|
|
|
NAB2, NAB2‥X
|
|
|
|
RNA22‥LL, RNA22‥XLL
|
|
|
|
NA22‥LL, NA22‥XLL
|
|
|
|
NATR, NATR‥X, NATR‥LL, NATR‥XLL
|
|
|
|
NATV, NATV‥X, NATV‥LL, NATV‥XLL
|
|
|
|
NACV, NACV‥X, NACV‥LL, NACV‥XLL
|
|
|
|
NUTR2, NUTR2‥X, NUTR3, NUTR3‥X
|
|
|
|
GILA, GILA‥X
|
|
12
|
Bantalan Rol Dorong
|
AXK11, AS11, WS811, GS811
|
|
|
|
811, 812, 893, 874, K811, K812, K893, K874, WS811
|
|
|
|
WS812, WS893, WS874, GS811, GS812, GS893, GS874
|
|
|
|
AXA21, ARA821, ZS
|
|
|
|
AXB21, ARB821, ZS
|
|
13
|
Kopling satu arah
|
HF
|
|
|
|
HFL
|
