| Merek | OTOTRI |
|---|---|
| Diameter bagian dalam | 12 MM |
| Diameter luar | 24 MM |
| Ketebalan | 13 MM |
| Berat badan | 27 G |
| Pengemasan | 1 |
|
Penamaan:
|

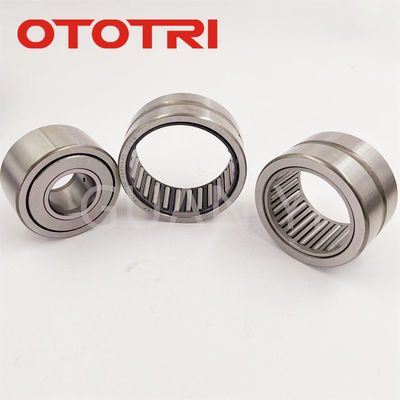

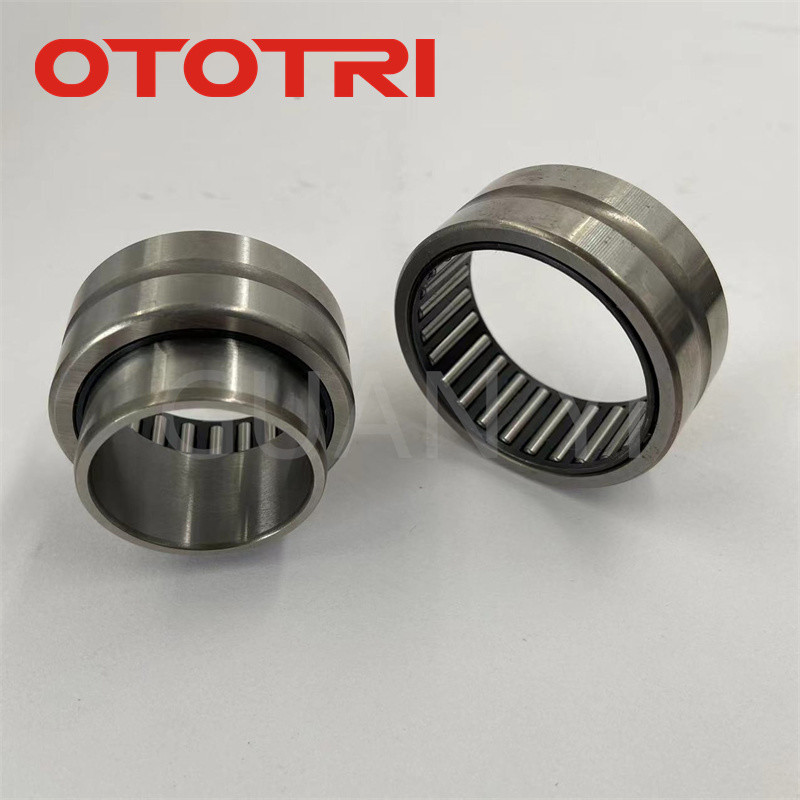

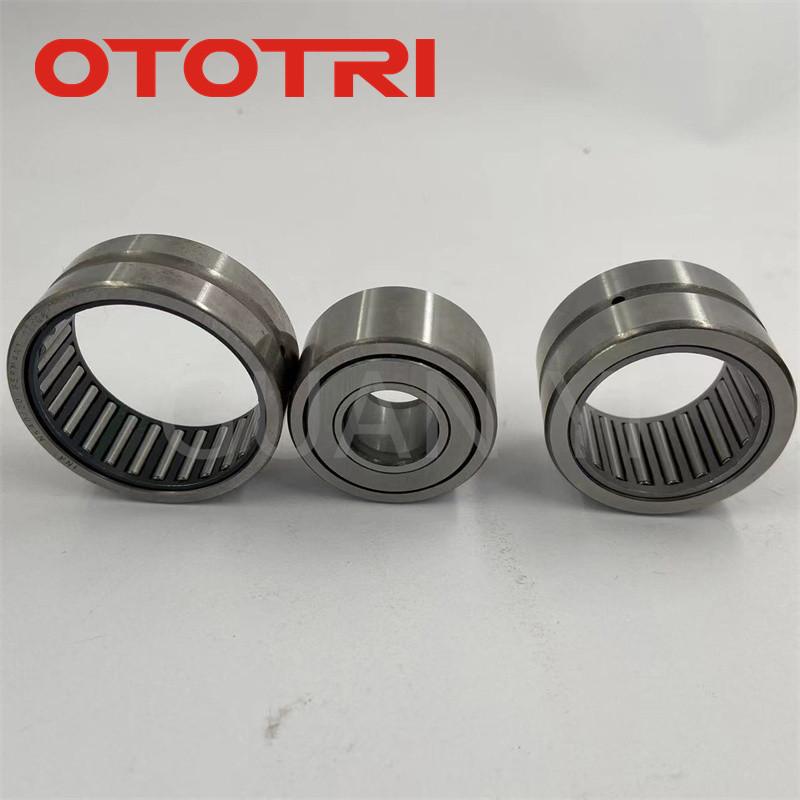

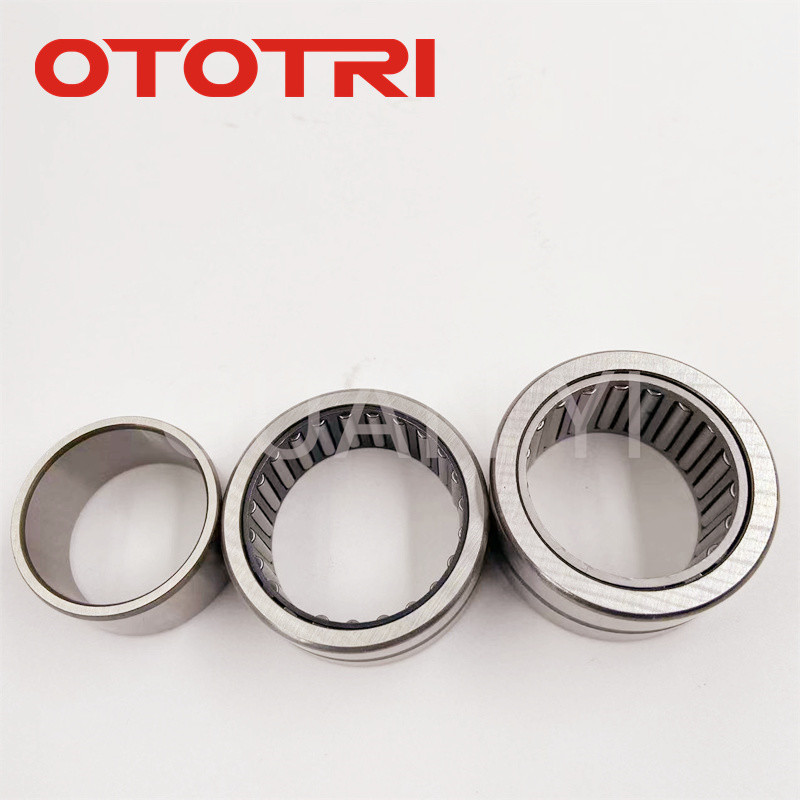

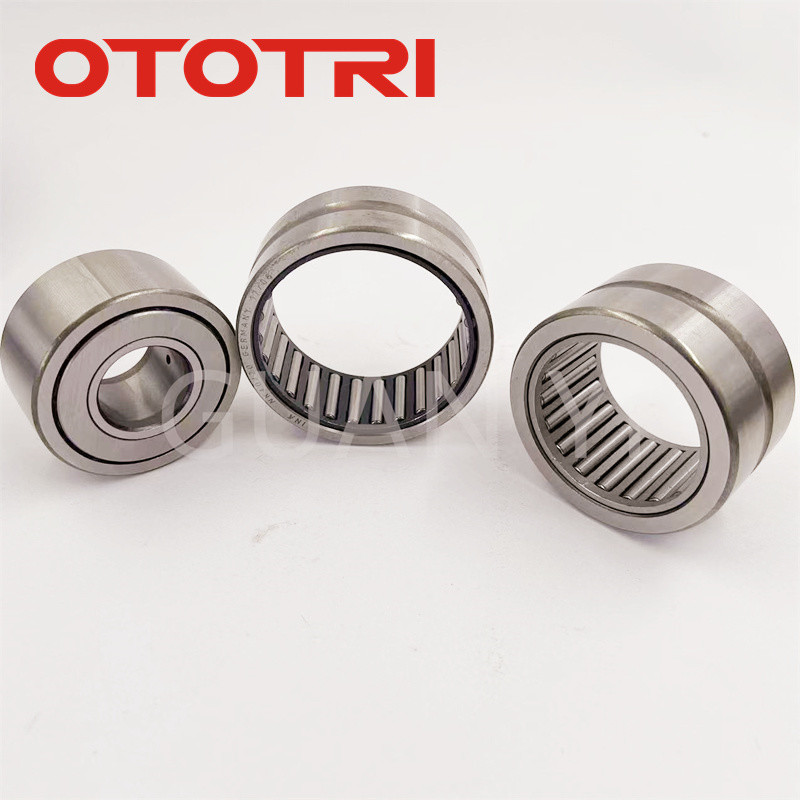

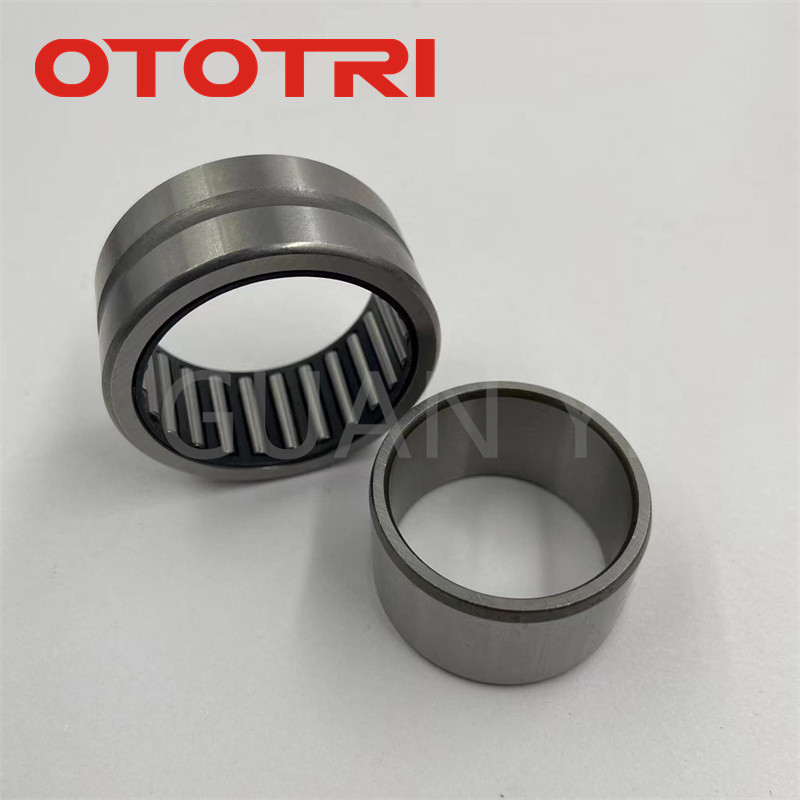

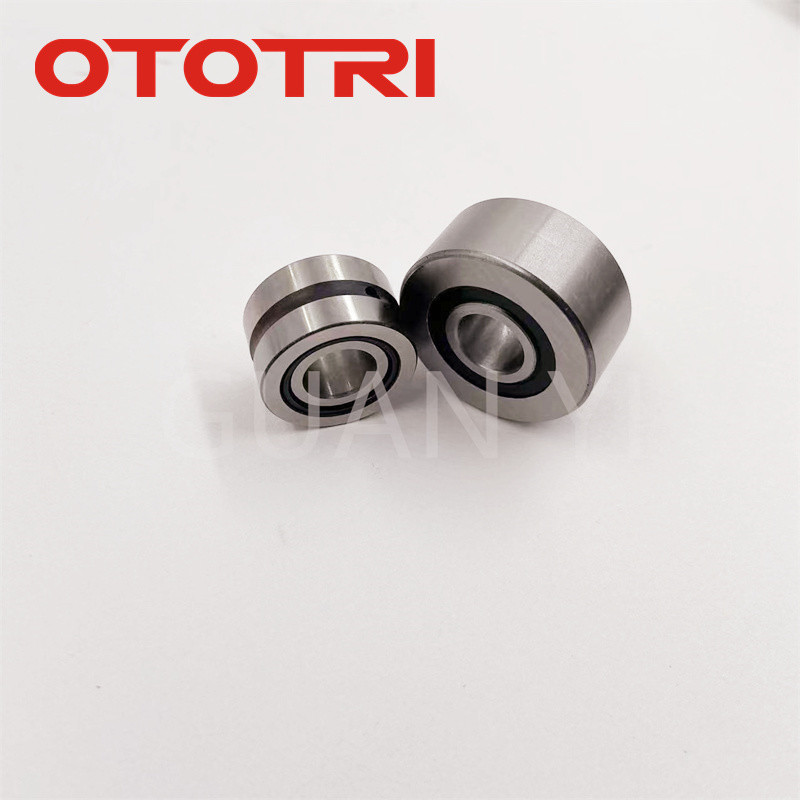

NA4901 NA4902 NA4903 NA4904 NA4905 NA4906 NA4907 NA4908 NA4909 NA4910 NA4911 NA4912 Bantalan Rol Jarum
|
|
|
Bantalan rol jarum dengan flanges tanpa cincin dalam
|
|
Bahan cincin:
|
GCR15/ Baja Mesin
|
|
Bahan Roller:
|
GCR15/ Baja krom
|
|
Bahan sangkar:
|
Nylon
|
|
Nomor Baris:
|
Baris tunggal
|
|
Peringkat presisi:
|
P0 P6 P5 P4
|
|
Industri Aplikasi:
|
Toko Bahan Bangunan, Pabrik Manufaktur, Toko Perbaikan Mesin, Pabrik Makanan & Minuman, Ritel, Pekerjaan Konstruksi, Energi
& Pertambangan dll. |
|
Daftar harga:
|
Bernegosiasi
|
|
Layanan:
|
OEM atau logo pelanggan dapat diterima dan penawaran sampel
|
|
Paketnya:
|
Kemasan industri atau sesuai kebutuhan pelanggan
|
|
Lebih banyak layanan:
|
Pls Hubungi kami. alamat kontak di bagian bawah.
|
|
Model bantalan
|
Dimensi ((mm)
|
|
|
Rating beban dasar ((KN)
|
|
Berat ((Kg)
|
||
|
|
d
|
F
|
D
|
Dyn.C
|
Stat.Co
|
|
||
|
NA4900
|
10 mm
|
22 mm
|
13 mm
|
8800N
|
10400N
|
0.02kg
|
||
|
NA4900 2RS
|
10 mm
|
22 mm
|
13 mm
|
7370N
|
8150N
|
00,03 Kg
|
||
|
NA4901
|
12 mm
|
24 mm
|
13 mm
|
9900N
|
12200 N
|
00,03 Kg
|
||
|
NA4901 2RS
|
12 mm
|
24 mm
|
13 mm
|
8090N
|
9650N
|
00,03 Kg
|
||
|
NA4902
|
15 mm
|
28 mm
|
13 mm
|
11200N
|
15300 N
|
00,03 Kg
|
||
|
NA4902 2RS
|
15 mm
|
28 mm
|
13 mm
|
9130N
|
12000N
|
00,04 Kg
|
||
|
NA4903
|
17 mm
|
30 mm
|
13 mm
|
11400N
|
16300N
|
00,04 Kg
|
||
|
NA4903 2RS
|
17 mm
|
30 mm
|
13 mm
|
9520N
|
12900 N
|
00,04kg
|
||
|
NA4904
|
20 mm
|
37mm
|
17 mm
|
21600 N
|
28000 N
|
0.08kg
|
||
|
NA4904 2RS
|
20 mm
|
37mm
|
17 mm
|
19400N
|
22400 N
|
0.08kg
|
||
|
NA49/22
|
22.000mm
|
39 mm
|
17 mm
|
23300 N
|
32000 N
|
00,08 Kg
|
||
|
NA4905
|
25 mm
|
42.000mm
|
17 mm
|
24200 N
|
34500 N
|
00,09 Kg
|
||
|
NA4905 2RS
|
25 mm
|
42.000mm
|
17 mm
|
21600N
|
27500N
|
00,09 Kg
|
||
|
NA49/28
|
28.000mm
|
45 mm
|
17 mm
|
25100 N
|
36500 N
|
0.10 Kg
|
||
|
NA4906
|
30 mm
|
47 mm
|
17 mm
|
25500 N
|
39000 N
|
0.10 Kg
|
||
|
NA4906 2RS
|
30 mm
|
47 mm
|
17 mm
|
23300 N
|
32000 N
|
0.11 Kg
|
||
|
NA49/32
|
32.000mm
|
52.000mm
|
20 mm
|
30800 N
|
51000N
|
0.16 Kg
|
||
|
NA4907
|
35 mm
|
55.000 mm
|
20 mm
|
31900 N
|
54000 N
|
0.17 Kg
|
||
|
NA4907 2RS
|
35 mm
|
55.000mm
|
20 mm
|
27000 N
|
43000 N
|
0.18 Kg
|
||
|
NA4908
|
40 mm
|
62 mm
|
22 mm
|
42900 N
|
71000N
|
0.23 Kg
|
||
|
NA4908 2RS
|
40 mm
|
62 mm
|
22 mm
|
36900 N
|
58500 N
|
0.25kg
|
||
|
NA4909
|
45 mm
|
68.000mm
|
22 mm
|
45700 N
|
78000 N
|
0.27 Kg
|
||
|
NA4909 2RS
|
45 mm
|
68.000mm
|
22 mm
|
39100 N
|
64000 N
|
0.29 Kg
|
||
|
NA4910
|
50 mm
|
72 mm
|
22 mm
|
47300 N
|
85000 N
|
0.27 Kg
|
||
|
NA4910 2RS
|
50 mm
|
72 mm
|
22 mm
|
40200N
|
69500 N
|
0.30 Kg
|
||
|
NA4911
|
55 mm
|
80.000mm
|
25 mm
|
57200 N
|
106000 N
|
0.40 Kg
|
||
|
NA4912
|
60 mm
|
85.000mm
|
25 mm
|
60500 N
|
114000 N
|
0.43 Kg
|
||
|
NA4913
|
65.000mm
|
90 mm
|
25 mm
|
61600N
|
120000 N
|
0.46 Kg
|
||
|
NA4914
|
70.000mm
|
100 mm
|
30 mm
|
84200 N
|
163000 N
|
0.73 Kg
|
||
|
NA4915
|
75.000mm
|
105mm
|
30 mm
|
84200 N
|
170000 N
|
0.78 Kg
|
||
|
NA4916
|
80.000mm
|
110.000mm
|
30 mm
|
88000 N
|
183000 N
|
0.88 Kg
|
||
|
NA4917
|
85.000mm
|
120 mm
|
35 mm
|
108000 N
|
250000 N
|
1.25 Kg
|
||
|
NA4918
|
90.000mm
|
125.000mm
|
35 mm
|
112000 N
|
265000 N
|
1.30 Kg
|
||
|
NA4920
|
100.000mm
|
140.000mm
|
40 mm
|
125000N
|
280000 N
|
1.90 Kg
|
||
|
NA4922
|
110.000mm
|
150.000mm
|
40 mm
|
130000 N
|
300000 N
|
2.10Kg
|
||
|
NA4924
|
120.000mm
|
165.000mm
|
45 mm
|
176000 N
|
405000 N
|
2.85 Kg
|
||
|
NA4926
|
130 mm
|
180.000mm
|
50 mm
|
198000N
|
480000 N
|
3.90Kg
|
||
|
1
|
Rangkaian rol jarum dan kandang
|
K, K..T2, K..S, K..ZW, KMJ, KMJ..S, KJ..S, KV..S
|
|
|
|
PCJ
|
|
2
|
Rangkaian rol jarum dan kandang untuk batang penghubung
|
PK
|
|
|
|
KBK
|
|
3
|
Bantalan rol jarum cangkir yang ditarik
|
HK, HK..ZWD, HMK, HMK..ZWD, BK, BK..ZWD
|
|
|
|
HK..L, HMK..L, HK..LL, HMK..LL, BK..L
|
|
|
|
DCL
|
|
|
|
HCK
|
|
4
|
Mesin-ring Needle Roller Bearings
|
RNA48, RNA49, RNA59, RNA69, NK, NKS
|
|
|
|
NA48, NA49, NA59, NA69, NK+IR, NKS+IR
|
|
|
|
MR
|
|
|
|
MR+MI
|
|
|
|
RNA49..L, RNA49..LL
|
|
|
|
NA49..L, NA49..LL
|
|
5
|
Mesin-ring Jarum Roller Bearings tipe yang dapat dipisahkan
|
RNAO, RNAO..ZW
|
|
|
|
NAO, NAO..ZW
|
|
6
|
Bantalan rol jarum yang menyelaraskan diri
|
RPNA..R
|
|
|
|
PNA..R
|
|
7
|
Cincin dalam
|
IR
|
|
|
|
MI
|
|
8
|
Bantalan rol jarum yang dapat disesuaikan dengan kelonggaran
|
RNA49..S
|
|
|
|
NA49..S
|
|
9
|
Bantalan yang Kompleks
|
NKX, NKX..Z
|
|
|
|
NKX+IR, NKX..Z+IR
|
|
|
|
NKXR, NKXR..Z
|
|
|
|
NKXR+IR, NKXR..Z+IR
|
|
|
|
NKIA
|
|
|
|
NKIB
|
|
|
|
AXN
|
|
|
|
ARN
|
|
10
|
Pengikut Cam
|
KRM..XH, KRMV..XH
|
|
|
|
KR..H, KR..XH, KR..LLH, KR..XLLH
|
|
|
|
KR, KR..X, KR..LL, KR..XLL
|
|
|
|
KRV..H, KRV..XH, KRV..LLH, KRV..XLLH
|
|
|
|
KRV, KRV..X, KRV..LL, KRV..XLL
|
|
|
|
KRT, KRT..X, KRT..LL, KRT..XLL
|
|
|
|
KRVT, KRVT..X, KRVT..LL, KRVT..XLL
|
|
|
|
KRU, KRU..X, KRU..LL, KRU..XLL
|
|
|
|
KRVU, KRVU..X, KRVU..LL, KRVU..XLL
|
|
|
|
NUKR..H, NUKR..XH
|
|
|
|
NUKR, NUKR..X
|
|
|
|
NUKRT, NUKRT..X
|
|
|
|
NUKRU, NUKRU..X
|
|
|
|
CR..H, CR..XH, CR..LLH, CR..XLLH
|
|
|
|
CR, CR..X, CR..LL, CR..XLL
|
|
|
|
CRV..H, CRV..XH, CRV..LLH, CRV..XLLH
|
|
|
|
CRV, CRV..X, CRV..LL, CRV..XLL
|
|
11
|
Pengikut Roller
|
RNAB2, RNAB2..X
|
|
|
|
NAB2, NAB2..X
|
|
|
|
RNA22..LL, RNA22..XLL
|
|
|
|
NA22..LL, NA22..XLL
|
|
|
|
NATR, NATR..X, NATR..LL, NATR..XLL
|
|
|
|
NATV, NATV..X, NATV..LL, NATV..XLL
|
|
|
|
NACV, NACV..X, NACV..LL, NACV..XLL
|
|
|
|
NUTR2, NUTR2..X, NUTR3, NUTR3..X
|
|
|
|
NUTW, NUTW..X
|
|
12
|
Bantalan rol dorong
|
AXK11, AS11, WS811, GS811
|
|
|
|
811, 812, 893, 874, K811, K812, K893, K874, WS811
|
|
|
|
WS812, WS893, WS874, GS811, GS812, GS893, GS874
|
|
|
|
AXA21, ARA821, ZS
|
|
|
|
AXB21, ARB821, ZS
|
|
13
|
Kopling satu arah
|
HF
|
|
|
|
HFL
|
